As a professional Load Break Switch manufacturer in China, Wzonpa provides high-quality electrical protection solutions designed for safe, reliable, and efficient power distribution systems. Each switch integrates a safe remote operation arc extinguishing system and a built-in short-circuit and grounding protection mechanism, allowing operators to safely disconnect load current even from a distance. This significantly reduces exposure to arc hazards and ensures the safety of both personnel and electrical equipment.

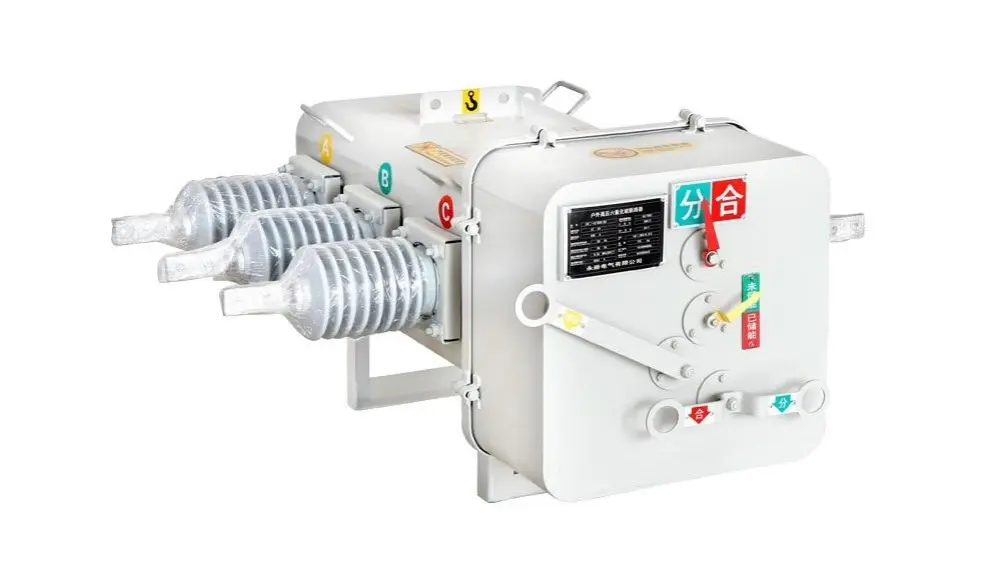

A Load Break Switch is an electrical switching device designed to safely make, carry, and break current under normal load conditions. Unlike simple disconnectors, it is engineered to interrupt load current safely with enhanced arc control mechanisms.
The switch achieves this function through fast operating speed of switch contacts, arcing horns for arc control, spring operating mechanisms for stable switching, and optional fuse combination for enhanced protection.
Electrical systems require not only power delivery but also safe disconnection under abnormal conditions. So, why is a Load Break Switch essential?
Because it helps to:
· Safely interrupt load current during operation
· Prevent equipment damage caused by faults
· Reduce arc-related risks
· Improve system maintenance safety
In combination with circuit breakers and fuses, a Load Break Switch forms a complete protection system that ensures stable and secure power distribution.
The Load Break Switch operates using a mechanical spring-driven mechanism that controls the opening and closing of electrical contacts under load conditions.
During operation, the device must withstand:
· Mechanical stress from fast switching
· Thermal stress caused by arc energy
· Dielectric stress under high voltage
To ensure reliability, every switch must comply with IEC 62271-103 standards, which define strict testing requirements for breaking performance, including transient recovery voltage (TRV) conditions.
1. High Safety Protection
It is designed to operate outside arc danger zones, effectively minimizing arc exposure risks. Some models also include grounding and short-circuit protection functions. When combined with HRC fuses, it provides enhanced transformer protection and system safety.
2. Cost-Effective Solution
Compared with vacuum circuit breakers, the Load Break Switch offers a more economical solution while maintaining reliable switching performance. Wzonpa provides factory-direct supply, reducing intermediate costs for global customers.
3. Easy Operation and Maintenance
It uses a spring-loaded mechanism for fast and stable switching. No special tools are required for ON/OFF operations. Its compact structure and strong vibration resistance make it suitable for harsh industrial environments.
4. Flexible Customization
Every project has different requirements. Wzonpa provides customized Load Break Switch solutions based on:
· Voltage and current ratings
· Installation structure
· Functional integration needs
From design confirmation to sample production, our engineering team provides full technical support.
A Load Break Switch is widely used across multiple industries:
· Power distribution substations
· Industrial manufacturing systems
· Commercial building electrical networks
· Renewable energy systems
· Mining and heavy industry facilities
