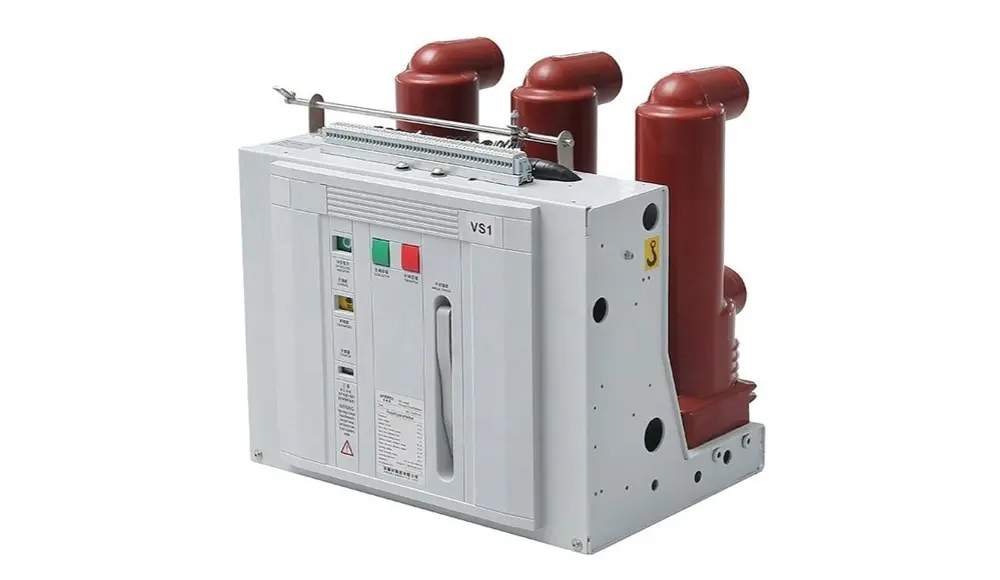

High quality Vacuum Circuit Breakers VCBs offered by leading China manufacturer Wzonpa, are advanced electrical protection devices designed to interrupt fault currents safely and rapidly in medium- and high-voltage power systems. By using a vacuum as the arc-extinguishing medium, they provide superior insulation performance, fast interruption speed, and long service life—making them a preferred solution for modern power distribution networks.
A Vacuum Circuit Breaker (VCB) is a safety device used to automatically cut off electrical current when faults such as overvoltage, undervoltage, or short circuits occur. Its primary function is to protect electrical equipment and ensure system stability.
Unlike conventional interrupters, Wzonpa factory’s Vacuum Circuit Breakers operate within a sealed vacuum chamber. When the contacts separate during a fault, an arc is generated. However, due to the vacuum’s extremely high dielectric strength, the arc is quickly extinguished, preventing damage to the system.
The operation of a VCB is based on a fast mechanical and physical interruption process:
1. Fault detection is triggered by thermal and magnetic protection systems.
2. The operating mechanism forces the moving contact to separate from the fixed contact.
3. An arc is formed due to ionized metal vapor between contacts.
4. In a vacuum environment, these ions rapidly disperse and lose conductivity.
5. The arc is extinguished almost instantly at the first current zero crossing.
The vacuum interrupter ensures that arcs are extinguished almost immediately, reducing contact erosion and extending operational life.
VCBs are fireproof and explosion-proof, making them suitable for high-risk environments such as chemical plants, substations, and industrial facilities.
No SF6 gas or harmful emissions are used, making Vacuum Circuit Breakers a sustainable alternative for modern power systems.
The sealed vacuum structure eliminates gas refilling and reduces maintenance frequency, significantly lowering operational costs.
Vacuum Circuit Breakers made in China are widely applied in:
· Power generation plants
· Industrial manufacturing facilities
· Commercial and residential substations
· Railway and transportation power systems
· Medium-voltage distribution networks (11kV–33kV)
Their reliability and compact design make them ideal for both indoor and outdoor installations.
