MV VCB Permanent Magnet Outdoor Vacuum Circuit Breaker

The Wzonpa factory’s MV VCB Permanent Magnet Outdoor Vacuum Circuit Breaker adopts a vacuum interrupter combined with a permanent magnet operating mechanism. Compared with traditional spring systems, the structure is simplified, reducing mechanical wear points. The design focuses on stable open/close control and long mechanical service life, supporting frequent operation scenarios in distribution automation systems.

Key structural characteristics:

Integrated vacuum interrupter unit

Permanent magnet holding mechanism

Compact outdoor insulation housing

Reduced mechanical linkage design

Working Conditions and Environmental Adaptability

This breaker is engineered for complex outdoor power environments.

Operating conditions include:

Ambient temperature: -40℃ to +45℃

Wind speed resistance: ≤34 m/s

Altitude: ≤3000 m

Pollution level: up to Class IV

Installation environment: no flammable, explosive, or strong corrosive conditions

It can operate in environments with dust, salt mist, smoke, and general industrial pollution, making it suitable for diverse grid infrastructures.

Permanent Magnet Operating Mechanism Advantage

The core operating system uses a permanent magnet mechanism, which maintains position stability through magnetic holding force. This reduces reliance on complex mechanical latching systems.

Main features:

Short mechanical transmission chain

Reduced component wear

Stable open/close positioning

Improved mechanical operation consistency

This design supports long-term operation in systems requiring repeated switching cycles.

Application Scenarios

The MV VCB Permanent Magnet Outdoor Vacuum Circuit Breaker is widely used in:

Substation distribution feeder protection

Industrial and mining enterprise power systems

Rural and regional grid automation systems

Outdoor distribution switchgear units

Locations requiring frequent load switching

Its structure supports integration into modern smart grid distribution networks.

Installation and Operation Considerations

Installation should follow standard outdoor switchgear engineering practices:

Ensure stable grounding system

Avoid vibration-heavy installation bases

Maintain clearance from corrosive gas sources

Check insulation integrity before commissioning

Proper installation supports long-term operational stability and reduces maintenance requirements.

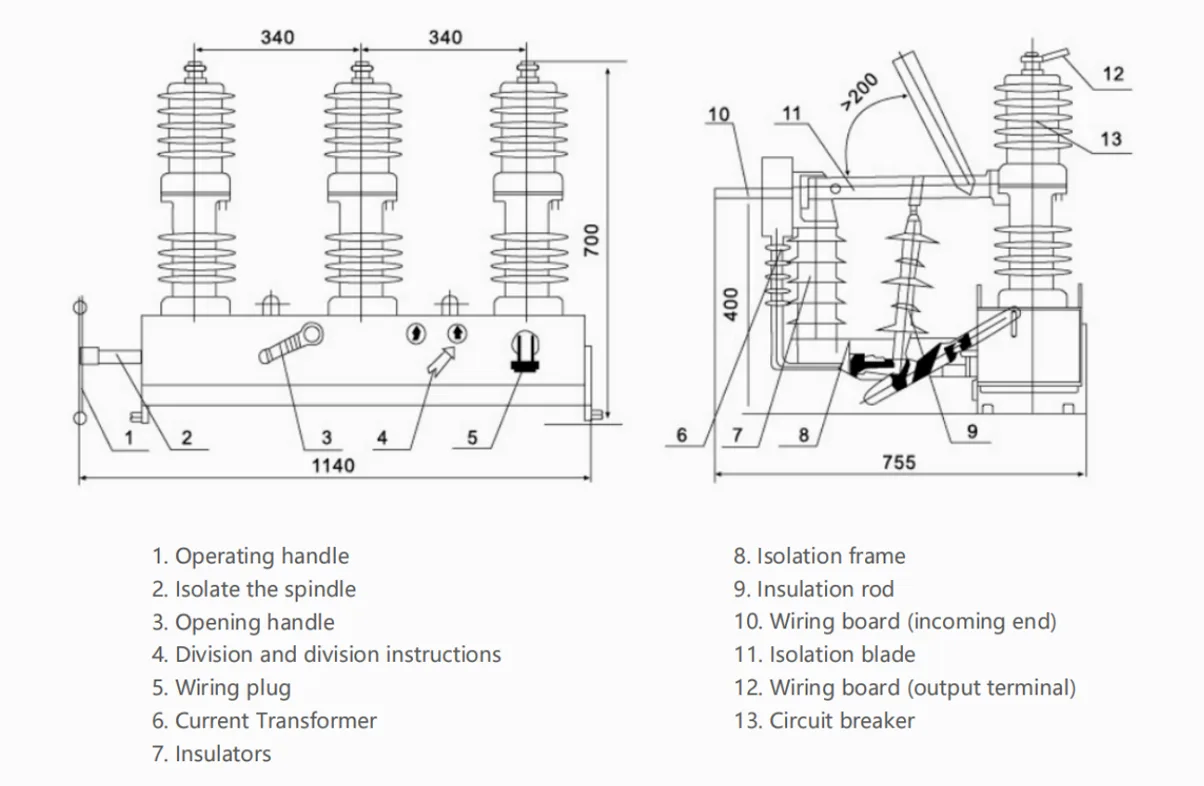

Appearance and installation dimensions

Technical parameters

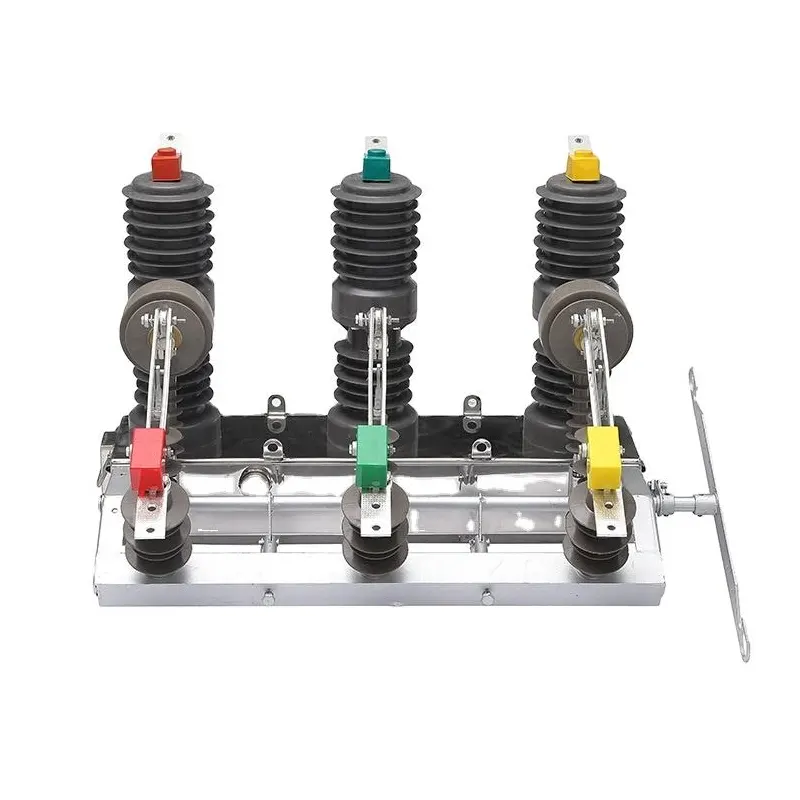

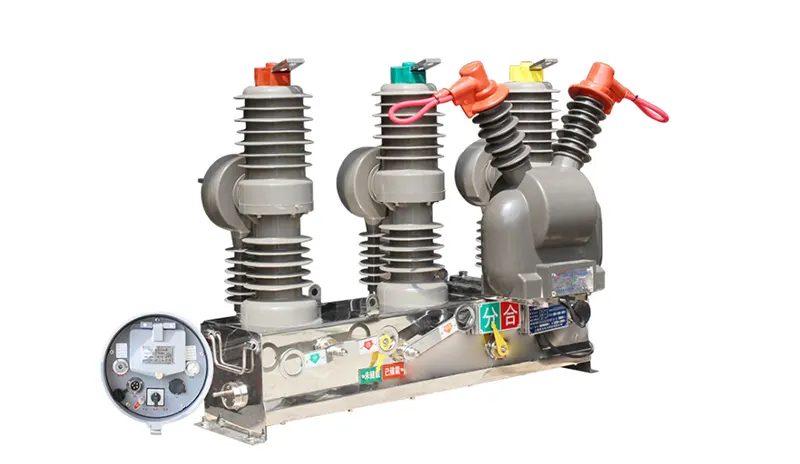

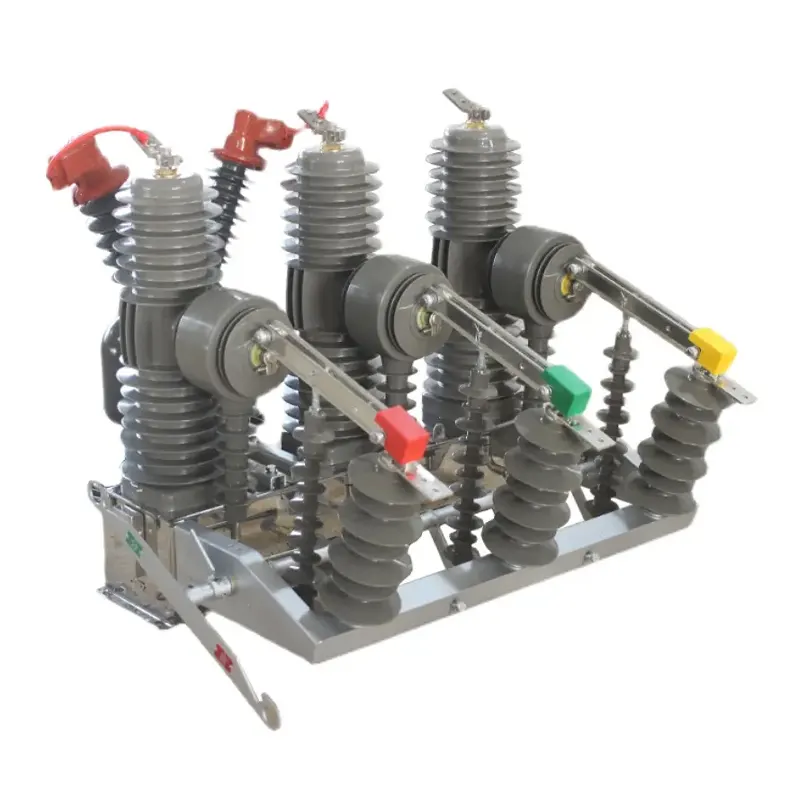

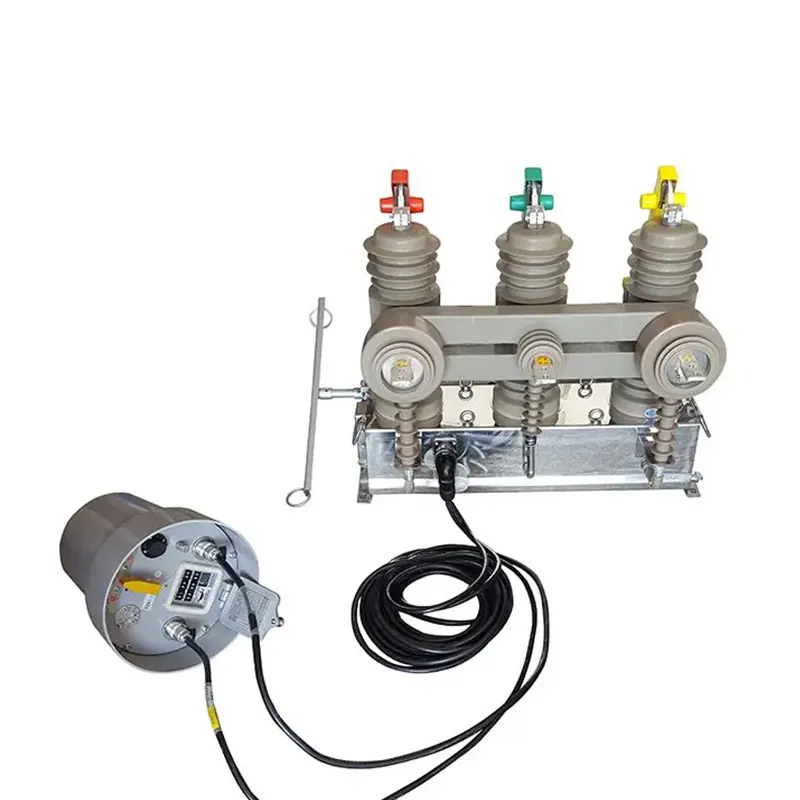

Product Show
