11KV Outdoor Sf6 LBS Load Break Switch

Wzonpa China manufacturer factory supplier delivers 11KV Outdoor Sf6 LBS Load Break Switch with durable stainless steel design, reliable arc extinction, and smart remote control for efficient, safe distribution systems.

What is 11KV Outdoor Sf6 LBS Load Break Switch?

The 11KV Outdoor Sf6 LBS Load Break Switch is a pole-mounted switching device designed to control, protect, and isolate medium-voltage distribution lines under load conditions.

Key Capabilities

Load switching & fault isolation: Ensures safe circuit breaking and automatic fault section isolation.

Multiple operation modes: Supports manual, electric, and remote control for flexible operation.

Smart monitoring: Integrated controller enables real-time system management.

Core Advantages

1.High quality Materials & Durability

Constructed with 304L stainless steel enclosure

Excellent corrosion resistance for harsh outdoor environments

Long service life with minimal maintenance

2.Advanced SF6 Insulation Technology

High-performance arc extinguishing capability

Stable insulation across extreme climates

Non-flammable and reliable operation

3.Intelligent Control System

Built-in wired and wireless communication modules

Compatible with automation systems and FTU interfaces

Enables remote monitoring and fault response

4.Safety-Oriented Design

Dual-pressure protection system

Mechanical interlocking to prevent misoperation

Clear visual indicators for operation status

Application Scenarios

The 11KV Outdoor Sf6 LBS Load Break Switch is widely used in:

Utility power distribution networks

Renewable energy integration systems

Industrial and mining power supply

Railway electrification infrastructure

Smart grid and automation projects

It performs reliably in coastal, high-altitude, and high-pollution environments.

Compared to Similar Products

Modular design with flexible installation (horizontal or suspended)

Multiple bushing options (ceramic or polymer)

Faster switching response (<100 ms)

Higher adaptability to extreme climates

Factory-sealed SF6 gas system with low leakage rate

High mechanical endurance (up to 6000 operations)

Compact structure for easy pole mounting

Reduced installation time and project cost

Working Principle

1.Switching Mechanism

Spring-operated mechanism enables rapid open/close action

Independent of external power fluctuations

2.Insulation & Arc Extinction

SF6 gas acts as both insulating and arc-quenching medium

Maintains dielectric strength even under heavy load conditions

3.Fault Detection & Isolation

Integrated controller detects faults

Automatically isolates affected sections to maintain grid stability

Appearance and installation dimensions

Technical parameters

FAQ

Q1: What is the main function of the 11KV Outdoor Sf6 LBS Load Break Switch?

A: It is used to switch load currents, isolate faults, and ensure safe operation of medium-voltage distribution systems.

Q2: Why choose SF6 insulation in this switch?

A: SF6 gas provides excellent arc extinguishing and insulation performance, ensuring stable operation even in harsh environments.

Q3: Can the 11KV Outdoor Sf6 LBS Load Break Switch support remote control?

A: Yes, it includes an intelligent controller with communication modules for remote monitoring and operation.

Q4: What environments is this product suitable for?

A: It is designed for outdoor use in extreme conditions, including high humidity, pollution, coastal, and high-altitude areas.

Q5: How does this product compare to traditional load switches?

A: It offers better durability, faster switching, smarter control, and higher safety protection than conventional switches.

Q6: Is installation complicated?

A: No, the pole-mounted modular design simplifies installation and reduces construction time and cost.

We ensure strict quality control and compliance with international standards. Bulk orders, customization options, and fast delivery are available to meet project demands.

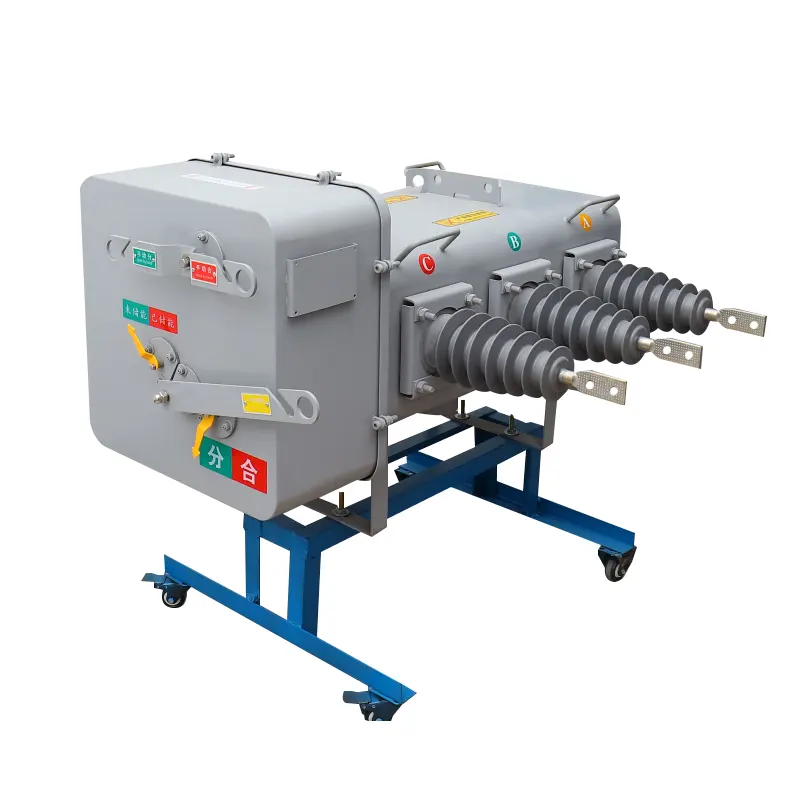

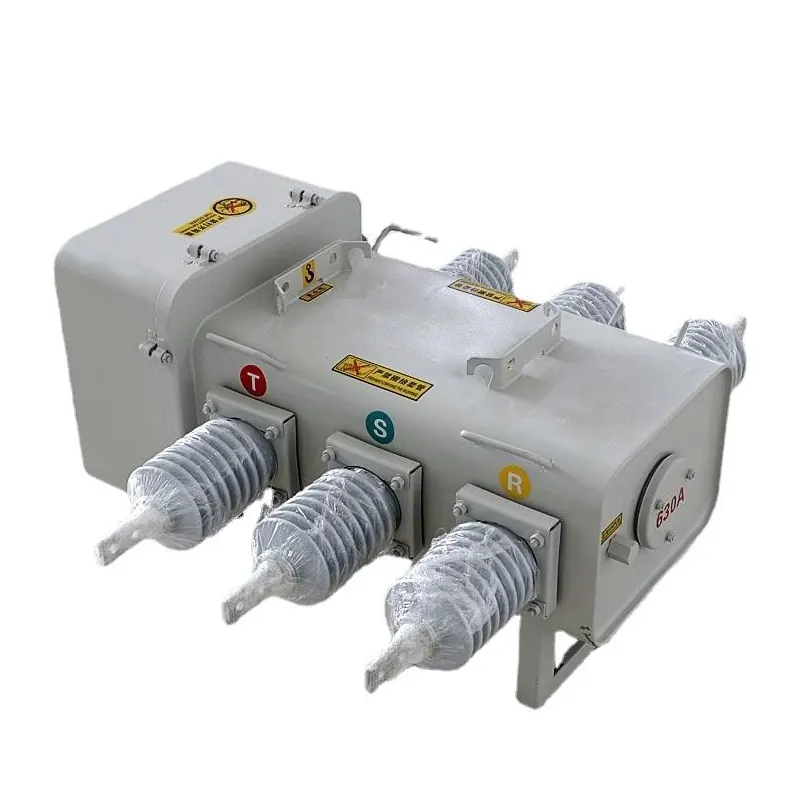

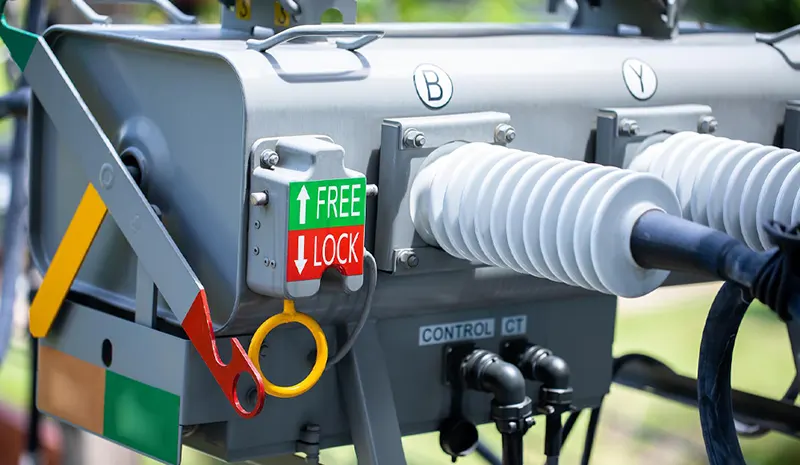

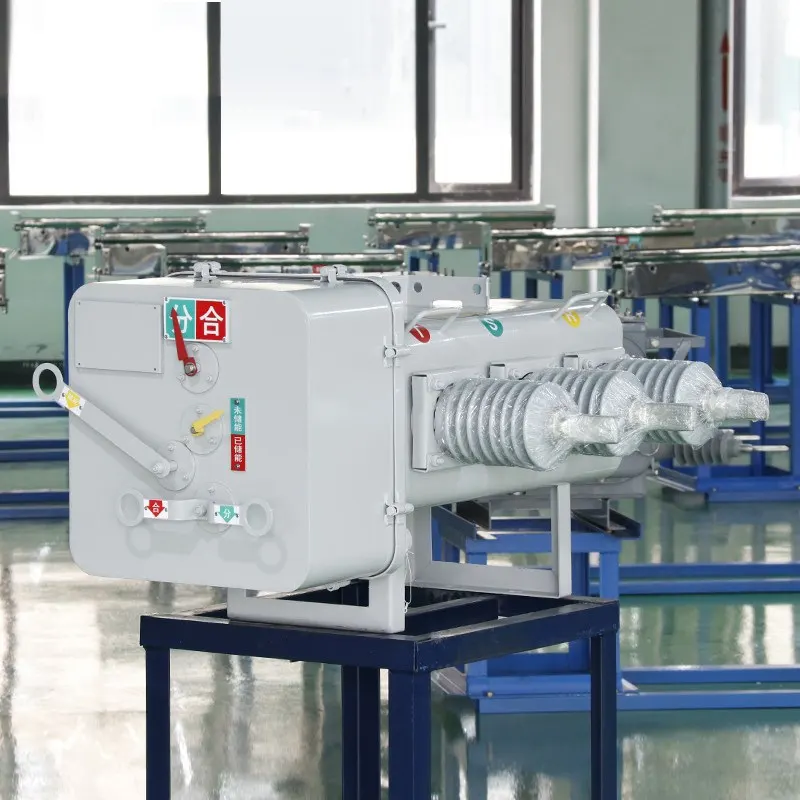

Product show:
