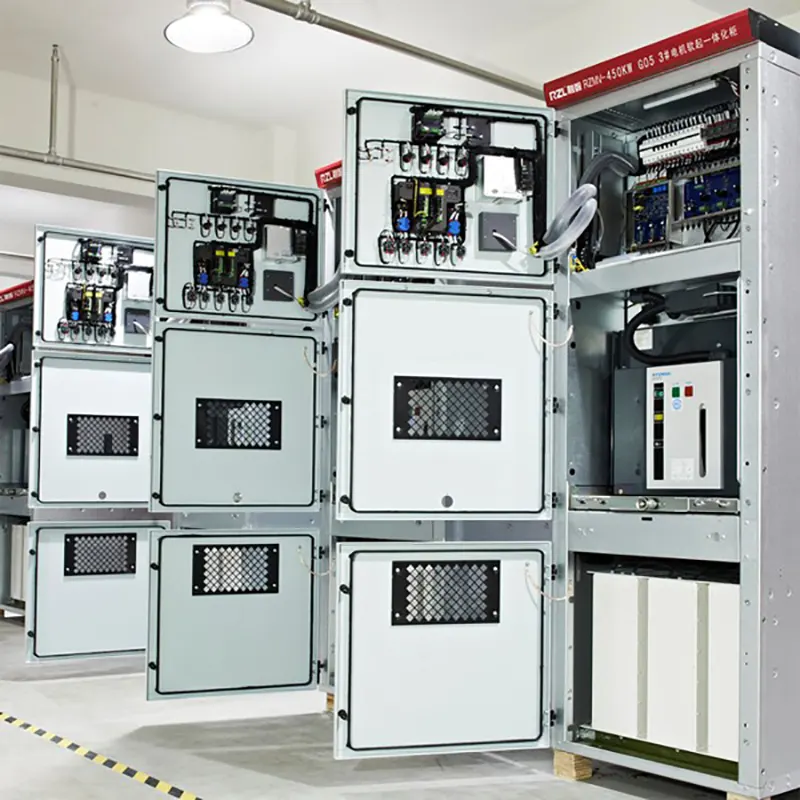

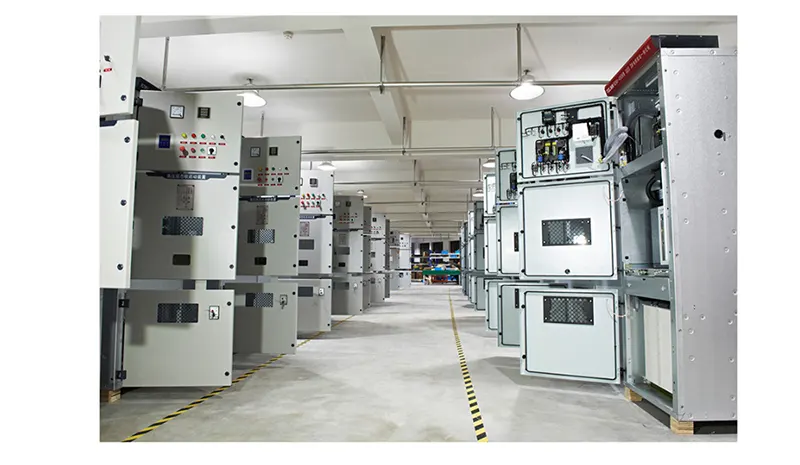

Wzonpa MV Solid-State Soft Starter – Reliable Control from a Trusted China Manufacturer
As a professional manufacturer in China, Wzonpa would like to provide you quality MV Solid-State Soft Starter designed for high-performance motor starting, protection, and intelligent control in demanding industrial environments. This advanced solution integrates starting, monitoring, protection, and communication into a compact system, ensuring stable and efficient motor operation.

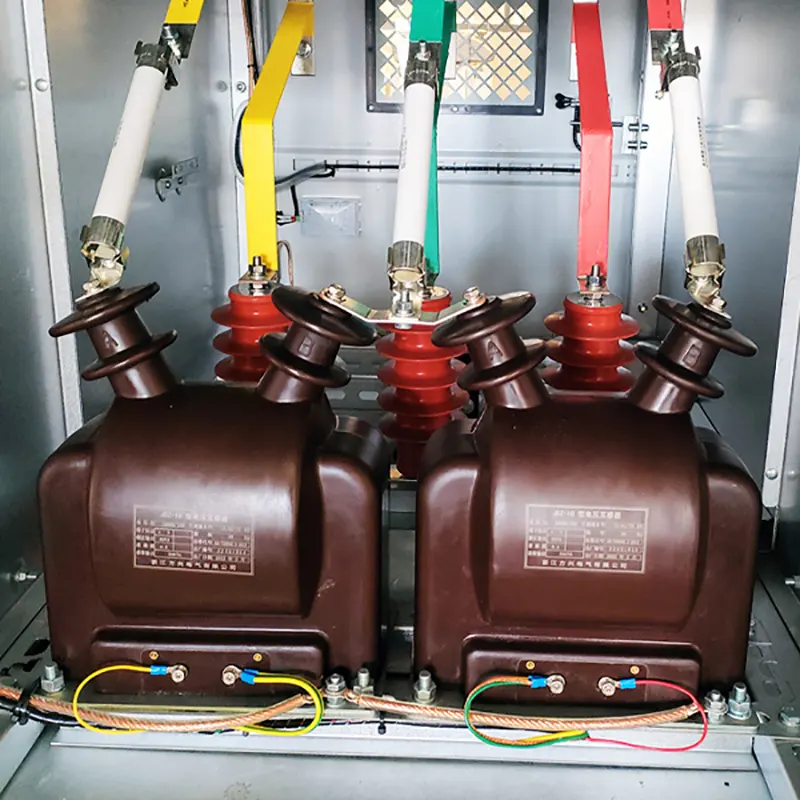

The MV Solid-State Soft Starter is an intelligent motor control device used to start medium-voltage motors smoothly by regulating voltage and current.
Controls starting torque and current through SCR conduction angle
Minimizes electrical and mechanical stress

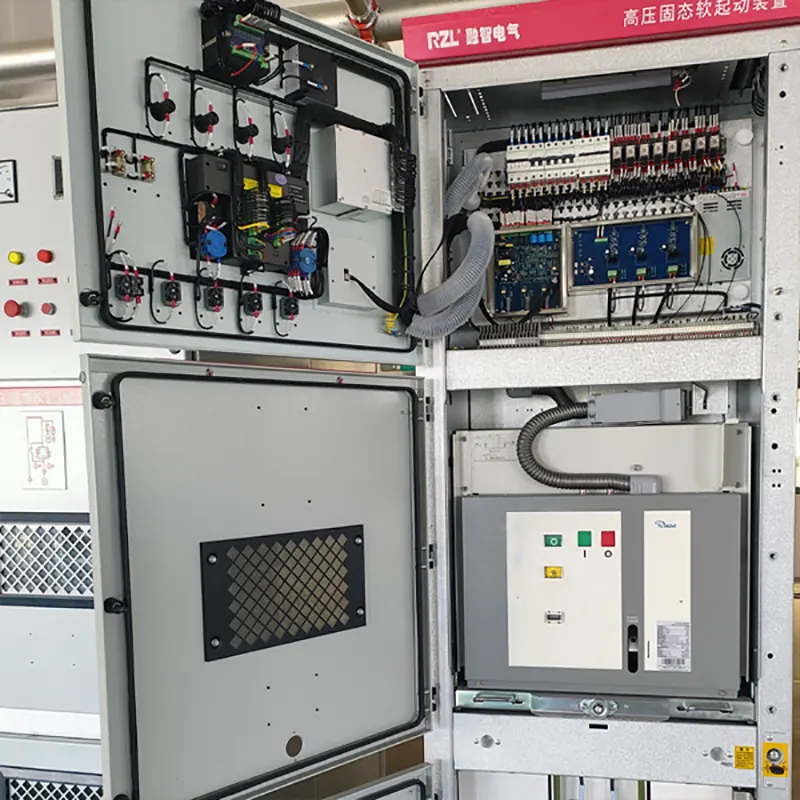

Automatically switches to bypass mode after startup
1.High Reliability & Protection
Multi-layer SCR protection ensures safe high-voltage operation
Real-time monitoring with fault memory (15 records)
Comprehensive protections: overcurrent, overload, phase loss, grounding
2.Smooth & Efficient Operation
Reduces inrush current and mechanical shock
Adjustable start/stop curves for different load requirements
Improves equipment lifespan and grid stability
3.Intelligent Control System
32-bit ARM processor for precise control

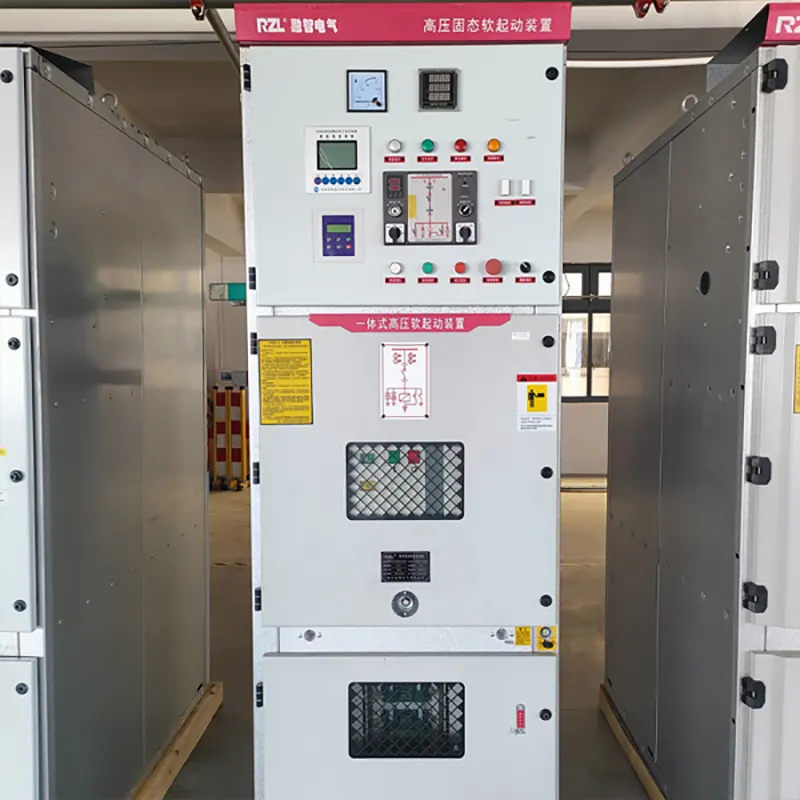

LCD/touch display with real-time data visualization
RS485 + Modbus communication for remote management
1.Daily Maintenance
Regularly check wiring and terminal connections
Ensure proper ventilation and dust prevention
Monitor operating parameters via display system
2.Operational Precautions
Avoid exceeding 3 starts per hour
Ensure correct voltage and environmental conditions
Perform periodic inspection of SCR modules
The MV Solid-State Soft Starter is widely applied in:
Power plants and substations
Steel, metallurgy, and chemical industries
Cement, paper-making, and mining operations
Equipment such as pumps, compressors, conveyors, and mixers
Example: In a steel plant, the MV Solid-State Soft Starter reduces startup impact on large fans, improving system stability and lowering maintenance costs.
| The Load Type |
Three-phase high voltage squirrel cage asynchronous motor,
synchronous motor 3000---10000VAC |
| Rated Voltage | |
| Working Frequency | 50Hz |
| Phase Sequence | Allowed to work in any phase sequence (phase sequence detection can be set by parameter)) |
| Main Loop Composition | 12SCRS、18SCRS、30SCRS (Depending on the model and rated voltage) |
| Bypass Contactor | Contactor with direct starting capacity |
| Control Power | AC220V±15% |
| Transient voltage overload protection | dv/dt Absorption of protection |
| Starter per hour | No more than 3 starting times per hour |
| Environmental conditions | -10℃-±50℃ |
| Relative humidity: 5% -95% Without condensation | |
| Capacity reduction is required when the altiude exceeds 1500 meters | |
| Protection Parameters | |
| open-phase protection | Disconnect any phase of the main power supply during startup or operation |
| Working overcurrent protection | Run overcurrent protection Settings: 20~500% |
| Phase currnt imbalance protection | Phase current imbalance protection: 0~100% |
| overload protection | Overload protection level: 10A、10、15、20、25、30 |
| Underload protection | Overload protection level: 10A、10、15、20、25、30 |
| overtime of Starting | limitation of Starting time : 0~120S |
| Phase Sequence Protection | Allows to work in any phase sequence (can be set by parameter) |
| Ground protection | Protection when grounding current is bigger than the set value |
| Communication Description | |
| Communicatin Agreement | Modbus RTU |
| Communication Connector | RS485 |
| Network Connection | Each RZMV can communicate with 30 RZMV devices on the network |
| Function | Through the communication interace, you can observe the running status and program |
| Operation Interface | |
| LCD display (optional contact screen) | LCD liquid crystal display (optional touch screen display) |
| )language | Chinese, English |
| keyboard | 6 touch film buttons |
| Strument display system | |
| Master Power Supply | Display three-phase main voltage |
| Three Phase Current | Display three-phase main loop current |
| Data Record | |
| Error Record | Record the latest15 faults |
| Starting Times | Record the starting times of the device |
| Voltage Parameter | Power(kW) Size | Size | Rated Current(A) | W(mm) | H(mm) | D(mm) |
| 3kV | 400 | RZMV-400-3 | 100 | 1000 | 2300 | 1500 |
| 630 | RZMV-630-3 | 150 | ||||
| 1600 | RZMV-1600-3 | 400 | 1150 | 2300 | 1500 | |
| 2500 | RZMV-2500-3 | 600 | Customized | |||
| 6kV | 420 | RZMV-420-6 | 50 | 1000 | 2300 | 1500 |
| 630 | RZMV-630-6 | 75 | ||||
| 1250 | RZMV-1250-6 | 150 | ||||
| 1600 | RZMV-1600-6 | 200 | 1000 | 2300 | 1500 | |
| 2500 | RZMV-2500-6 | 300 | ||||
| 3300 | RZMV-3300-6 | 400 | ||||
| 4150 | RZMV-4150-6 | 500 | Customized | |||
| 5000 | RZMV-5000-6 | 600 | ||||
| 10kV | 420 | RZMV-420-10 | 30 | 800 | 2300 | 1500 |
| 630 | RZMV-630-10 | 45 | ||||
| 800 | RZMV-800-10 | 60 | ||||
| 1250 | RZMV-1250-10 | 90 | ||||
| 1500 | RZMV-1500-10 | 110 | ||||
| 1800 | RZMV-1800-10 | 130 | ||||
| 2250 | RZMV-2250-10 | 160 | ||||
| 2500 | RZMV-2500-10 | 180 | ||||
| 2800 | RZMV-2800-10 | 200 | 1000 | 2300 | 1500 | |
| 3500 | RZMV-3500-10 | 250 | ||||
| 4000 | RZMV-4000-10 | 280 | ||||
| 4500 | RZMV-4500-10 | 320 | ||||
| 5500 | RZMV-5500-10 | 400 | ||||
| 6000 | RZMV-6000-10 | 430 | ||||
| 7000 | RZMV-7000-10 | 500 | ||||
| 8500 | RZMV-8500-10 | 600 | ||||
| 10000 | RZMV-10000-10 | 720 | Customized | |||
| 15000 | RZMV-15000-10 | 1080 | ||||
