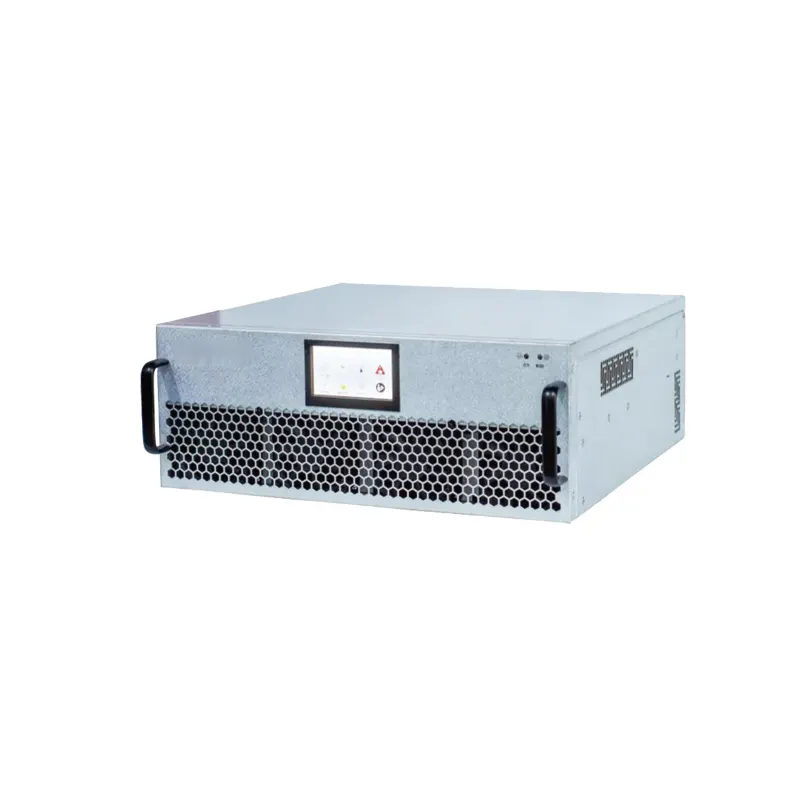

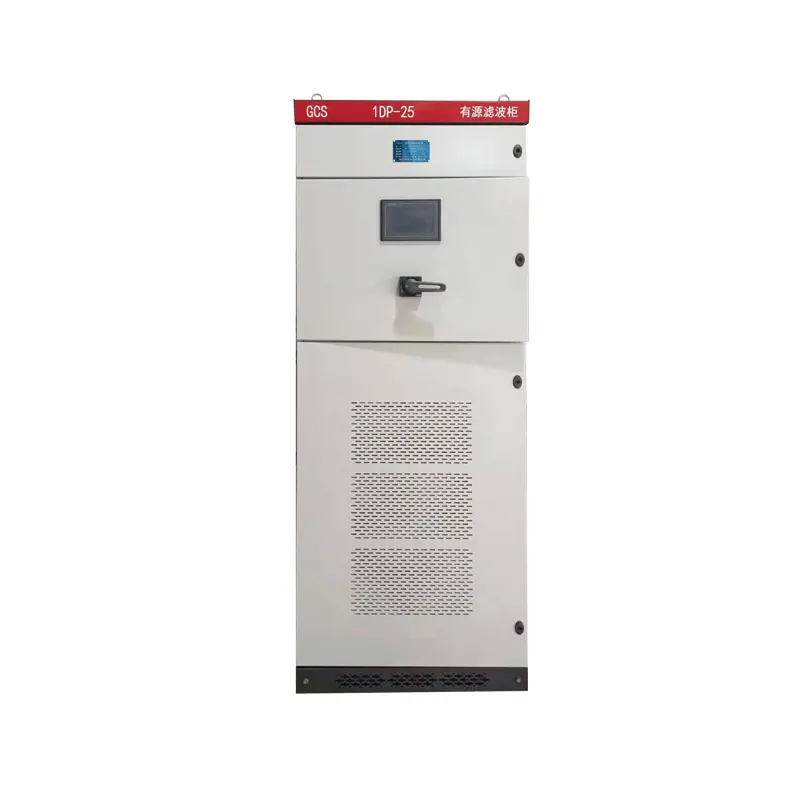

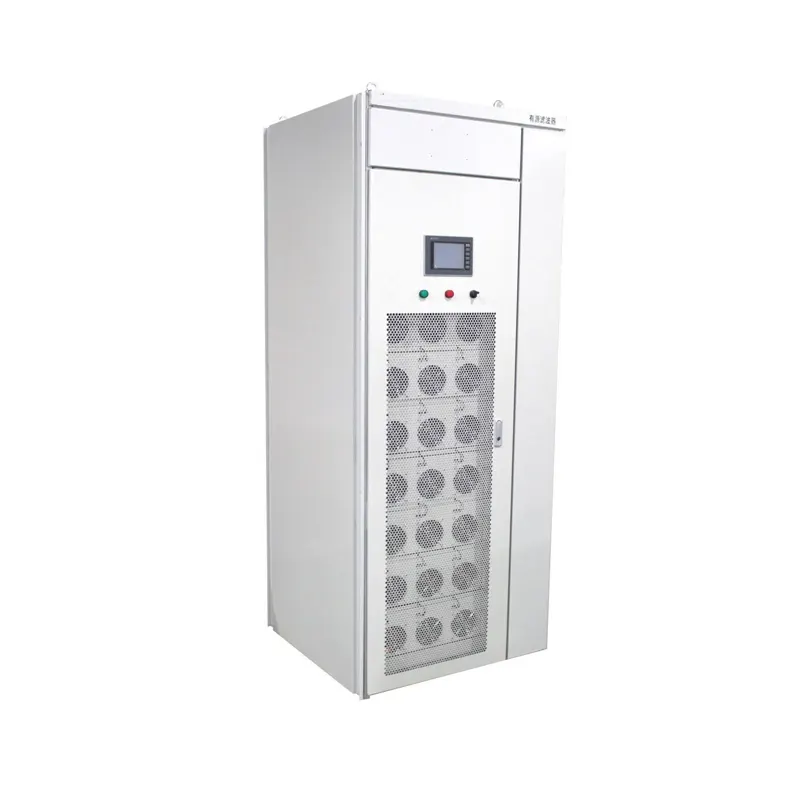

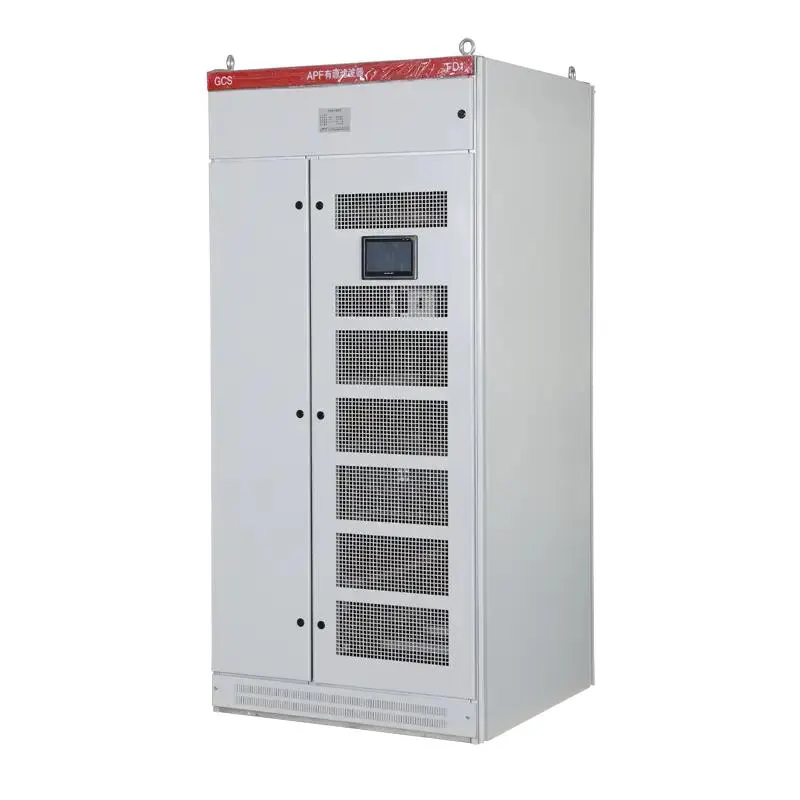

Wzonpa factory’s MV Active Power Filter APF SVG is designed to dynamically monitor, analyze, and compensate harmonic distortion in real time, ensuring stable and efficient grid operation. By integrating DSP intelligent control and IGBT inverter technology, MV Active Power Filter APF SVG delivers precise current injection to cancel unwanted harmonics and improve system efficiency.
The MV Active Power Filter APF SVG uses an external CT to detect load current in real time. Through high-speed DSP computation, harmonic components are extracted and an inverse compensation current is generated. The inverter injects this current back into the grid, achieving instant harmonic elimination and power factor correction.
High efficiency ≥97%, reducing energy loss significantly
Fast response <10ms ensures real-time correction
Unlimited parallel operation for flexible system expansion
Multi-function compensation: harmonics, reactive power, and imbalance
Intelligent air cooling with low noise <65dB
Advanced protection including overvoltage, short circuit, and inverter fault
MV Active Power Filter APF SVG ensures stable performance even under complex load conditions.
MV Active Power Filter APF SVG is widely applied in:
Industrial manufacturing plants with nonlinear loads
Renewable energy systems such as wind and solar farms
Data centers requiring stable voltage quality
Metallurgy, mining, and petrochemical industries
Large commercial buildings and transportation hubs
Regular inspection of cooling systems and CT connections ensures long-term stability. Dust control, firmware monitoring, and periodic parameter calibration help maintain optimal performance of MV Active Power Filter APF SVG under continuous operation.
Compared with traditional passive filters, MV Active Power Filter APF SVG provides adaptive compensation rather than fixed filtering. It responds dynamically to load changes, avoids resonance risk, supports multi-harmonic suppression (>97%), and delivers higher precision and scalability, making it a more reliable long-term investment.
| Size | 400V |
| 50A-450A | |
| Rated input line voltage | 380V(-40%~+20%) |
| Power frequency | 50/60Hz(Range 45Hz~62Hz) |
| Number of Parallelable | unlimited |
| Overall efficiency | ≥97% |
| Power network structure | Three phase three wire four phasefour wire |
| Current transformer | 150/5~10000/5 |
| Circuit topology | Three level |
| Performance index | |
| Harmonic compensation | support |
| Reactive compensation | support |
| Unbalance compensation | support |
| Harmonic range | >97% |
| Fast response time | <100μs |
| Total reponse time | <10ms |
| Target power factor | Capacitive sensibility is continuously adjustable |
| Switch frequency | 10kHz |
| Cooling Type | Intelligent air cooling |
| Noise label | <65dB |
| Communication interface | RS485, CAN, network interface |
| Communication agreement | General electric protocol, Modbus protocol |
|
Module dis la interface Protection function |
LCD multi-function touch color screen |
| Protection of overvoltage,short circuit, inverter reverse and over compensation | |
| Fault Alarm | Yes |
| Environmental requirement | |
| Altitude | ≤1500mm, Between 1500 and 4000m, according to GB/T3859-2, every 100m increase, the power is reduced by 1 |
| Operating temperature | -10℃~+40℃ |
| Relative humidity | 5%~95%,without condensation |
| Protection Grade | Other IP levels can be customized |
