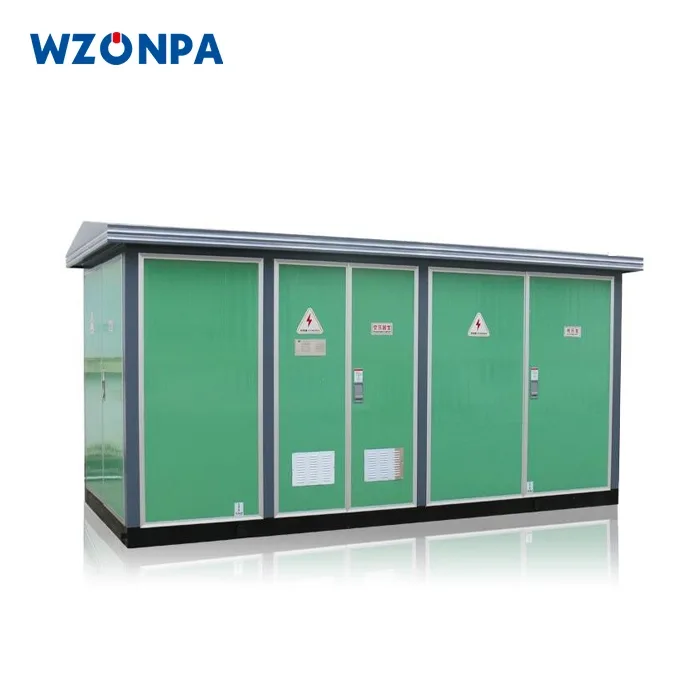

A prefabricated substation, often known as a compact substation or packaged substation, is a modern power distribution unit designed to integrate high-voltage switchgear, low-voltage switchgear, transformer, and auxiliary equipment into a single enclosure. It is widely used in urban power distribution, industrial plants, commercial complexes, and construction sites. The growing demand for energy efficiency, safety, and ease of installation has made prefabricated substations an ideal choice for many industries.
Below are the standard technical parameters that define the quality and performance of our prefabricated substations:
| Parameter | Specification |
| Rated Voltage | 6kV - 40.5kV |
| Rated Capacity | 100kVA - 2500kVA |
| Protection Degree | IP33 - IP54 |
| Cooling System | ONAN / ONAF |
| Transformer Type | Oil-immersed / Dry-type |
| Switchgear Options | Vacuum circuit breaker / SF6 switchgear |
Our prefabricated substations are designed for versatile applications, ensuring safety and reliability in every setting. The following are the most common uses:
1. Urban residential communities and commercial centers
2. Industrial factories and manufacturing plants
3. Mining and oil fields
4. Railway and transportation projects
5. Renewable energy integration such as solar and wind farms
6. Large-scale construction projects
Our factory ensures that each prefabricated substation is manufactured with advanced technology, strict quality control, and tailored solutions. The major benefits include:
1. Compact structure that reduces space requirements
2. High safety standards with reliable protective devices
3. Easy installation and minimal civil engineering cost
4. Adaptability to harsh weather and tough environments
5. Reduced maintenance due to modular design
6. Energy efficiency that reduces operating costs
Q1: What is a prefabricated substation and how does it work?
A prefabricated substation is a compact power distribution unit that combines high-voltage switchgear, transformer, and low-voltage switchgear inside a single enclosure. It works by receiving electrical energy at medium or high voltage, transforming it through the built-in transformer, and then distributing the electricity at a lower, safer voltage for industrial, commercial, or residential use.
Q2: What are the advantages of using a prefabricated substation compared to a traditional substation?
Unlike traditional substations that require extensive civil works and longer installation time, prefabricated substations are delivered as a complete set. They save construction cost, occupy less space, and provide enhanced safety with integrated protective equipment. Our factory designs substations with advanced modular structures that reduce downtime and improve operational efficiency.
Q3: How long is the service life of a prefabricated substation?
With proper maintenance, a prefabricated substation can last over 25 years. The enclosure is treated with anti-corrosion coating to withstand outdoor environments, while the transformer and switchgear are selected for durability. Wzonpa products are tested under strict international standards to ensure long service life and dependable performance.
Prefabricated substations have become an essential solution for modern power distribution systems, offering compact design, fast deployment, and superior safety. Our factory continues to deliver high-quality solutions with the brand Wzonpa, trusted in global markets. Partnering with Wzonpa means working with a trusted name in the power distribution field. Our team ensures each prefabricated substation is tailored to customer needs while maintaining compliance with safety and performance standards. With our strong engineering capability and production capacity, we provide turnkey solutions that meet the highest industry expectations. For more details or project consultation, contact Wenzhou Wzonpa Import and Export Co., Ltd. today and let our expertise support your next project.
