YB-35 0.4KV PV Photovoltaic Solar Substation

Wzonpa, as a professional manufacturer and supplier in China, develops the YB-35 0.4KV PV Photovoltaic Solar Substation for modern photovoltaic and medium-voltage distribution systems. It is a compact prefabricated power distribution solution integrating medium-voltage switchgear, transformer unit, and low-voltage distribution system into one enclosure. It is designed to support grid expansion, renewable energy integration, and efficient power delivery in both urban and industrial environments.

This YB-35 0.4KV PV Photovoltaic Solar Substation is engineered to improve distribution network flexibility while reducing footprint and operational complexity, making it ideal for evolving power infrastructure demands.

Core Advantages

1.Compact & Space-Saving Design

Integrated structure significantly reduces land occupation

Prefabricated layout enables fast deployment

Suitable for areas with limited installation space

2.High Reliability & Safety

The YB-35 0.4KV PV Photovoltaic Solar Substation adopts oil-free insulation and high-performance switchgear, ensuring stable operation under harsh outdoor conditions. High-breaking fuses and multi-protection design enhance system safety.

3.Energy Efficiency & Low Loss

Low-loss transformer with eco-friendly design

Reduced noise and optimized energy conversion

Supports long-term cost reduction in operation

4.Flexible Operation Modes

The YB-35 0.4KV PV Photovoltaic Solar Substation supports both ring network and terminal configurations, enabling easy adaptation to different grid structures and future upgrades.

Maintenance and Operating Conditions

Designed for outdoor environments, it operates reliably under:

Altitude below 2000m

Temperature range from -45℃ to +45℃

Wind speed below 35m/s

Seismic intensity up to level 8

Routine maintenance is minimal due to modular design. The YB-35 0.4KV PV Photovoltaic Solar Substation features compartment-based structure for safe inspection, automatic ventilation control, and intelligent temperature management.

Applications and Use Cases

The YB-35 0.4KV PV Photovoltaic Solar Substation is widely used in:

Industrial and mining enterprises

Airports, railway stations and ports

Residential communities and urban infrastructure

Highways, subways and distributed PV power stations

In photovoltaic projects, the YB-35 0.4KV PV Photovoltaic Solar Substation ensures stable voltage regulation and efficient energy transmission, improving overall system performance.

Competitive Advantages

Compared with traditional substations, the YB-35 0.4KV PV Photovoltaic Solar Substation offers:

Smaller footprint and faster installation

Higher integration level with reduced wiring complexity

Better adaptability to PV and grid-upgrade projects

Lower lifecycle maintenance and operational cost

Choosing Wzonpa ensures direct factory supply, stable quality control, and engineering support tailored to project requirements.

Main technical parameters

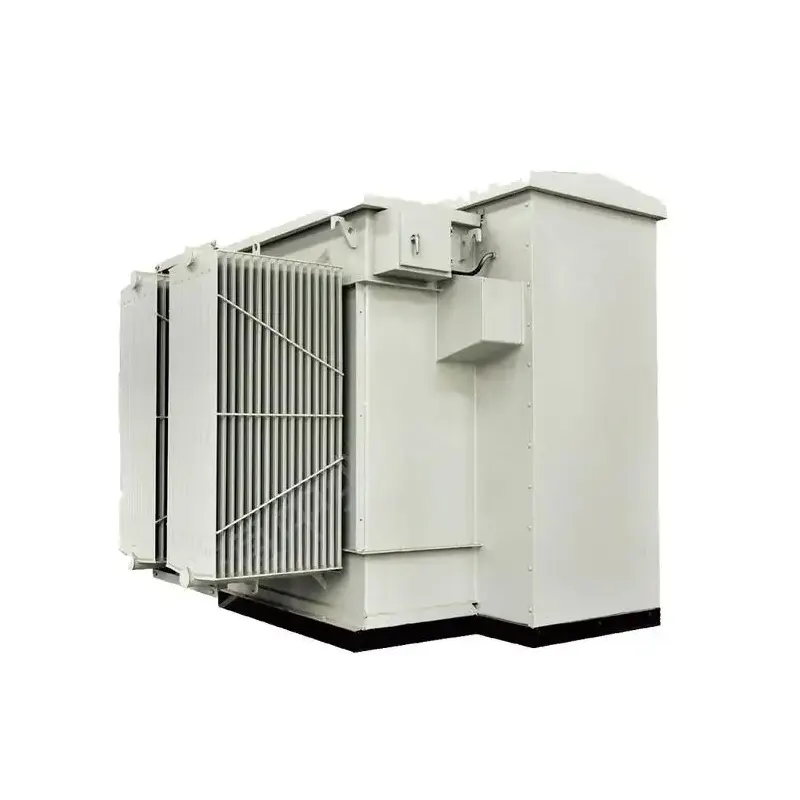

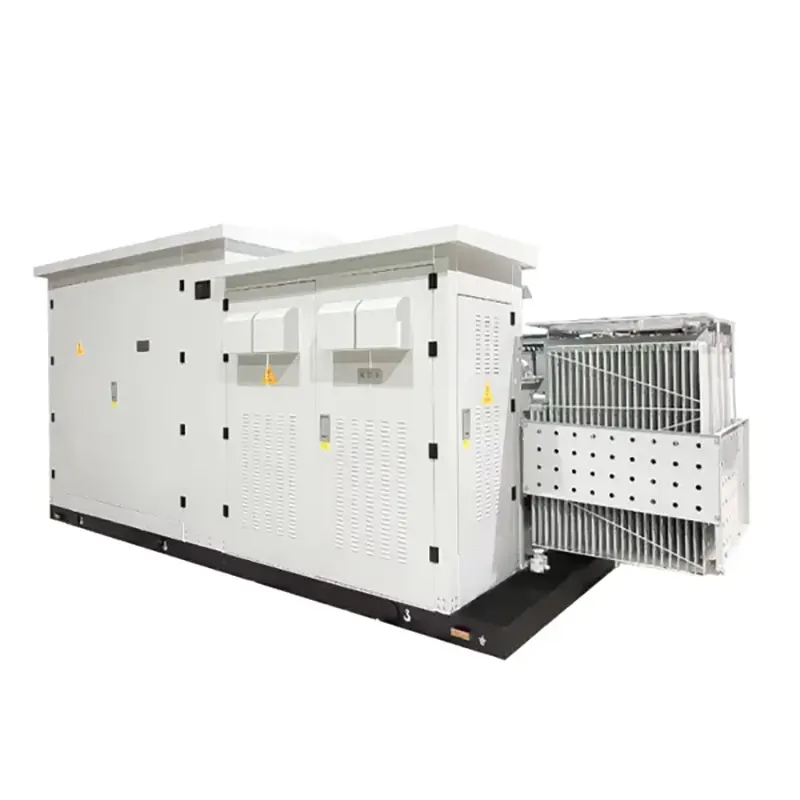

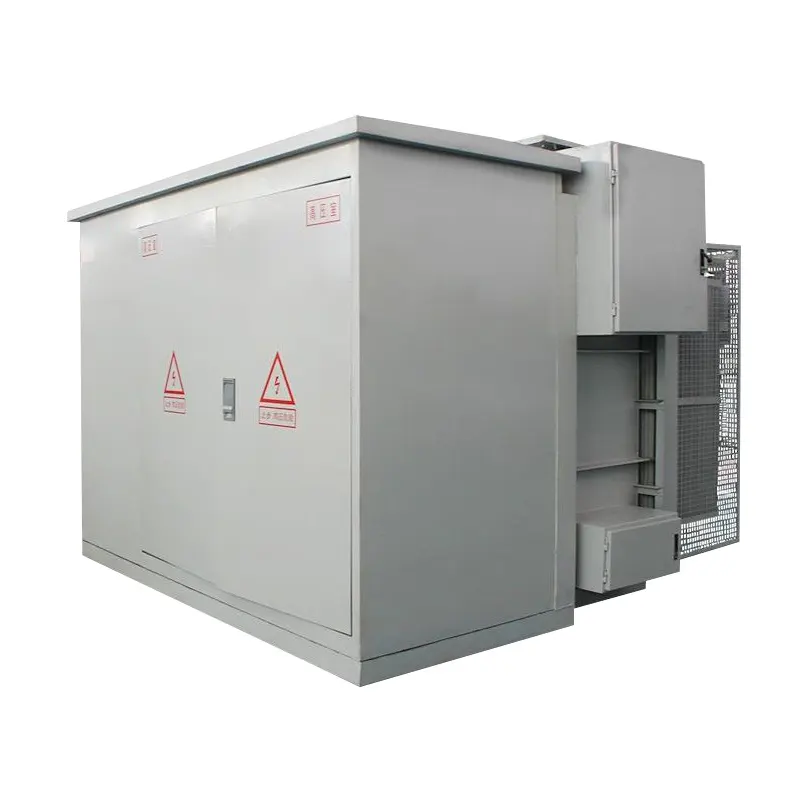

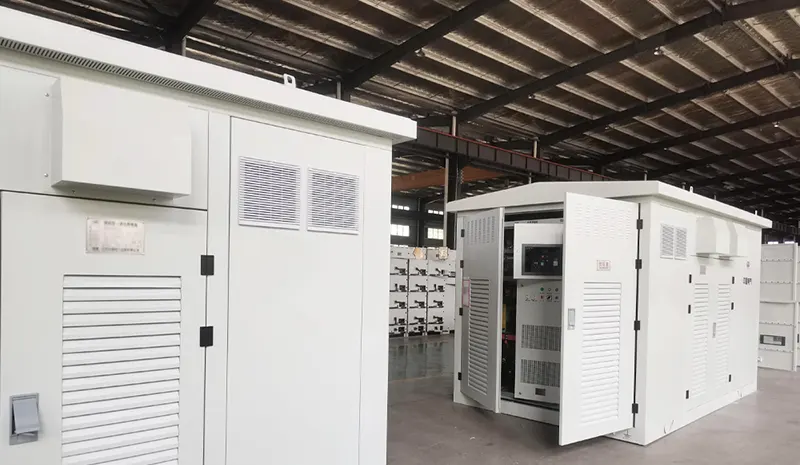

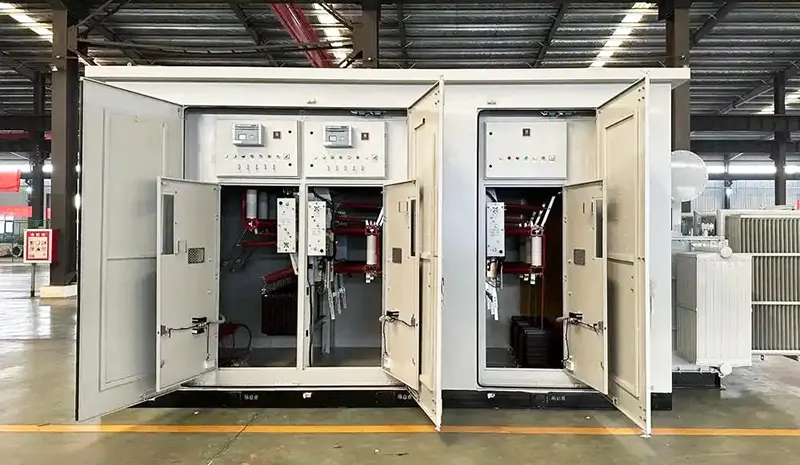

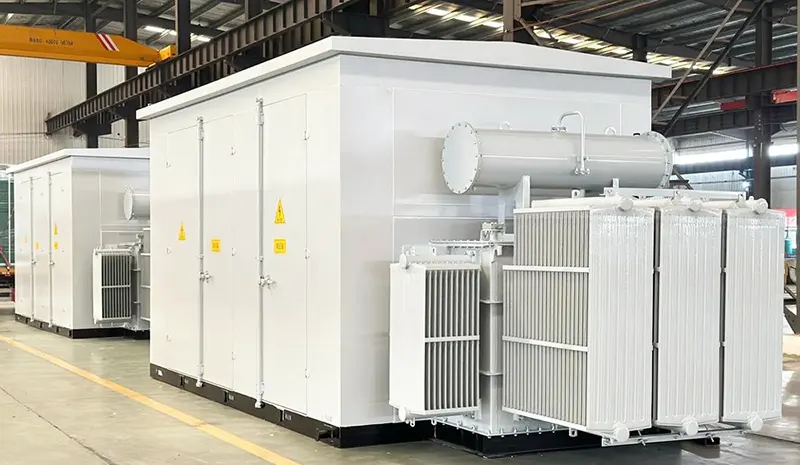

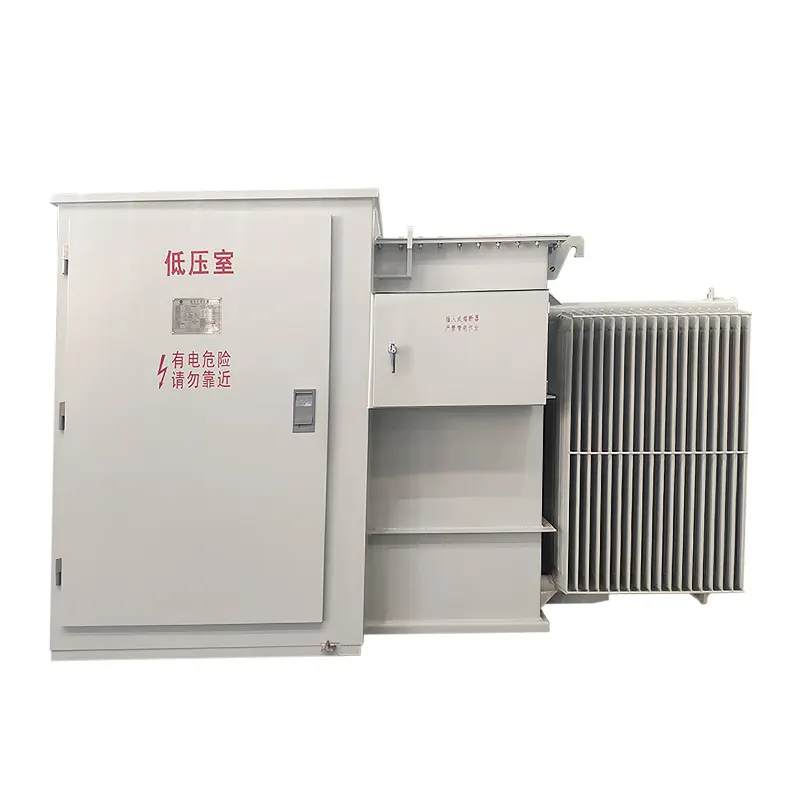

Product show
